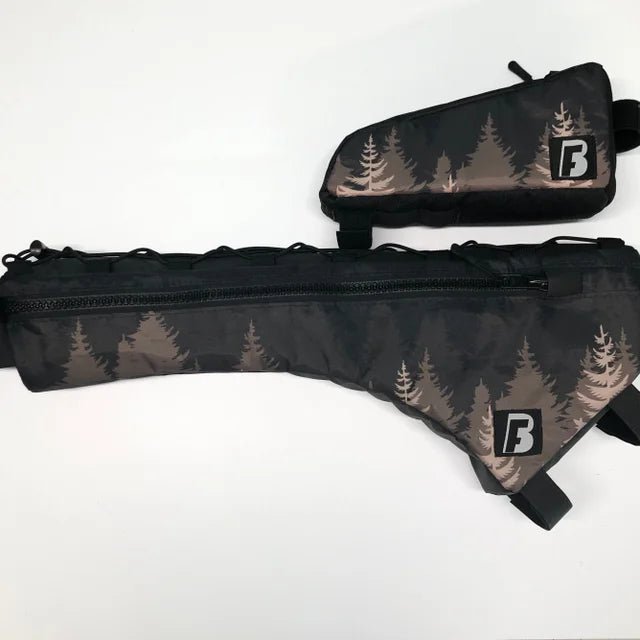

Half Frame Bag

These full custom Half Frame bags are constructed to fit your frame perfectly with your choice of technical fabric. Custom printed fabrics are available and fabric combinations are possible so you can express yourself and have the frame bag of your dreams! The shape of the bag is fully custom to meet your needs, accommodate water bottles, etc.

• The panels against the seat tube and down tube are constructed with black Ballistic fabric for durability in these higher abrasion areas. The top tube panel will match your main fabric choice or can be customized for an accent color.
• The bottom panel and the panels against the seat, top, and down tube are padded to protect your items and to prevent them from rattling against your frame. The bag is lined with a light colored pack-cloth fabric to increase visibility inside the bag.
• Bags are 2.75" wide at the seat tube and taper to 3.5" at the head tube as a standard, but this can be changed at your request.
• The drive-side zippers are YKK #10 nylon with hoods, and if you choose to have a non-drive side map pocket it can have a YKK #8 Aquaguard or YKK #10 nylon zipper depending on your preference.
• All seams are double-stitched with 100% polyester thread for durability, UV protection, and mildew resistance. All seams are finished to prevent fraying.
• The zippered flat map pocket (if added) goes on the non-drive side with the zipper 1.5" down from your top tube. This pocket contains double mesh pockets inside and a key holder (example in photos).
• There are lace-up and bolt-on options for attaching the bag to your frame.
• A hydration port is standard and allows your water hose to come out the top panel of the bag near the head tube. The bag can be made without this port at your request
• There is an option to add a bike pump strap on the inside top of the top tube panel. It is a daisy chain that runs along the length of the top tube with two or three straps of one-wrap Velcro to hold the bike pump or tent poles in place (example in the pictures).

Be sure to follow the custom framebag instructions to ensure a perfect fit.

When will I get this rad bag? Jacque will design, cut, and construct this item once you place your order, so it will ship or we will contact you about pickup in 20-30 business days. The best estimates for lead times are published on the home page of our website.

Please email explore@broadforkbags.com with custom inquiries.

Handmade in Salt Lake City, UT.
